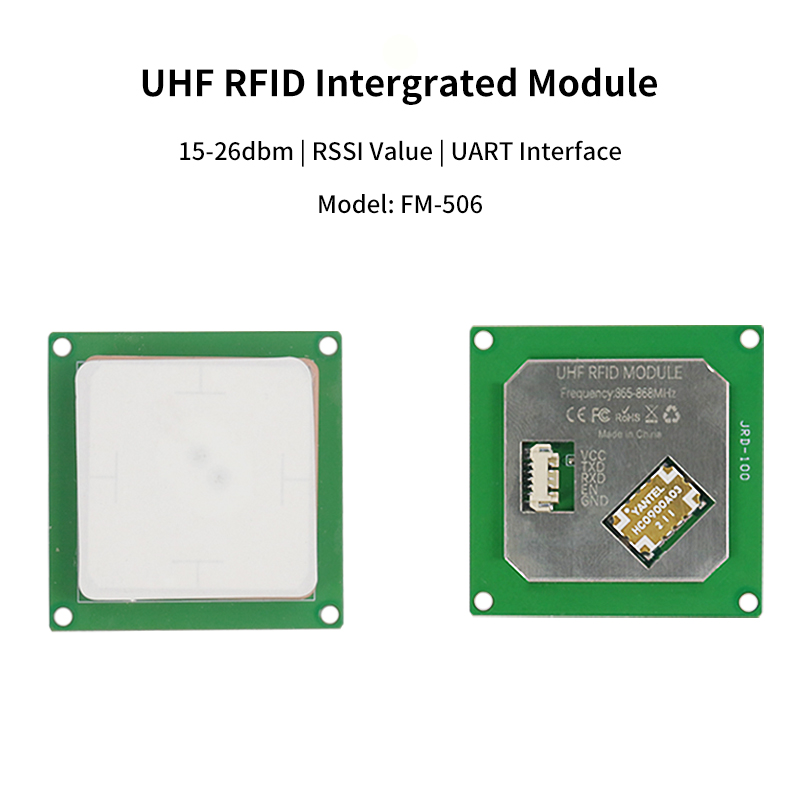

1.Support Integration
2.ISO 18000-6C
3.UART Interface
4.Support RSSI value
5.15-26dbm
|
Model |
FM-506 |
|
Protocol |
ISO18000-6C / EPC C1 GEN2 |
|
Frequency |
865-868MHZ(EU),902-928MHZ(US) |
|
RF Power Output |
18-26dBm |
|
Operating time |
<100mS. |
|
Interface |
TTL 232 Uart interface (3.3V ) |
|
Gain antenna |
3dbi |
|
Module size |
50*50mm |
|
Communication baud rate |
115200 bps(default and recommend)38400bps |
|
Read distance |
0-2.5M(depends on tags ) |
|
Tags RSSI |
Support |
|
Read time |
＜100ms |
|
Output power |
+/- 1dB |
|
Output power flatness |
+/- 0.2dB |
|
Receive |
< -70dBm |
|
Standby current |
<80mA(EN pin high level) |
|
Sleeping current |
<100uA(EN pin low level) |
|
Operation current |
180mA @3.5V(26dBm output, 25℃) |
|
Heat-dissipating method |
Air cooling(no need for out install cooling fin) |
|
Tags storage |
200pcs tags @ 96 bit EPC |
|
Working temp |
- 20 °C ~ + 70 °C |
|
Storage temp |
- 20 °C ~ + 85 °C |
