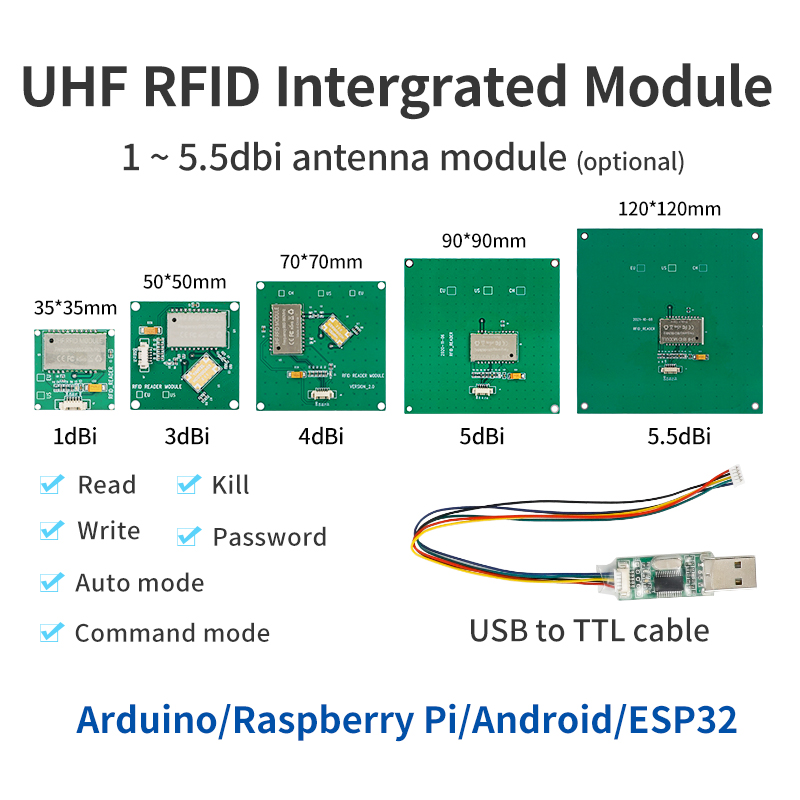

    FM50X UHF RFID Integrated Module

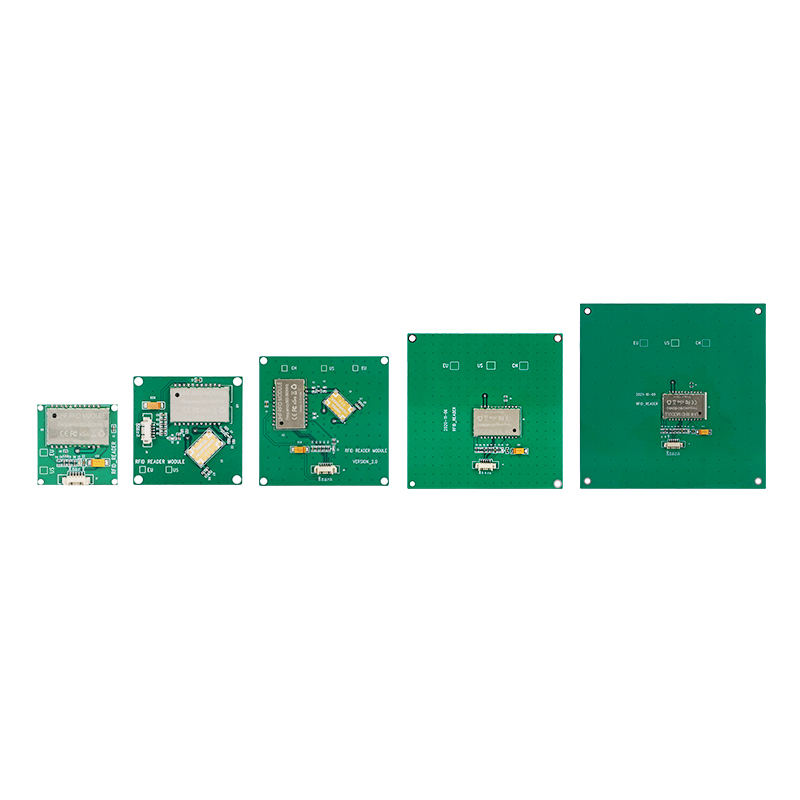

    FM-50X UHF RFID Integrated Module
    1.Support Arduino/Raspberry Pi/Android/ESP32
    2.Support Android / Windows SDK
    2.RF Power:-2~25dbm(adjustable)
    4.Connect RS232,USB,TTL
    5.1~5.5dbi antenna(Optional)

    Model

    FM-505

    Protocol

    ISO18000-6C / EPC C1 GEN2

    Frequency

    865-868MHZ(EU),902-928MHZ(US)

    RF Power Output

    -2~25dBm

    Interface

    TTL(UART)

    Gain antenna

    3dbi antenna

    Module size

    50*50mm

    Read distance

    2.5M(depends on tags )

    Read speed

    >50pcs tags/sec

    Tags storage

    200pcs tags @ 96 bit EPC

    Power supply

    3.3V-5V

    Standby current

    <80mA(EN pin high level)

    Sleeping current

    <100uA(EN pin low level)

    Operation current

    180mA @3.5V(25dBm output, 25℃)

    110mA @ 3.5V (-2 dBm output,25°C)

    Receive sensitivity

    <70dbm

    Heat-dissipating method

    Air cooling(no need for out install cooling fin)



    1.UHF RFID module*1pcs

    2.Test card *1pcs
    3.5 PIN Cable *1pcs
    4.SDK and DEMO(After bought,we will send it to your E-mail)
