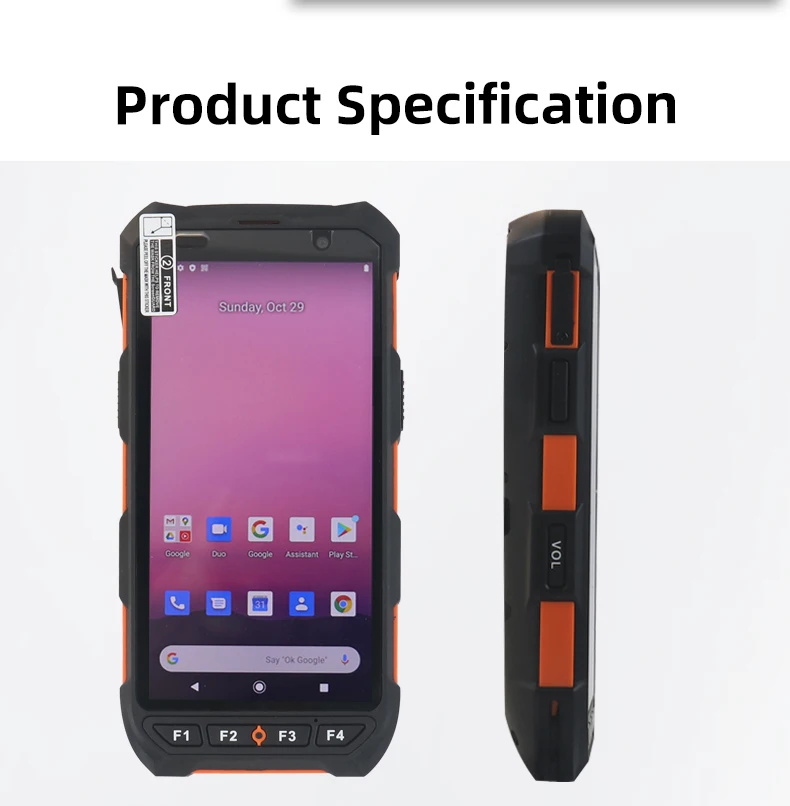

PHYSICAL CHARACTERISTICS

Dimension

170mm(H)x81mm(W)x28mm(D)±2 mm

Weight

Net Weight :400g
(including battery&wrist strap)

Display

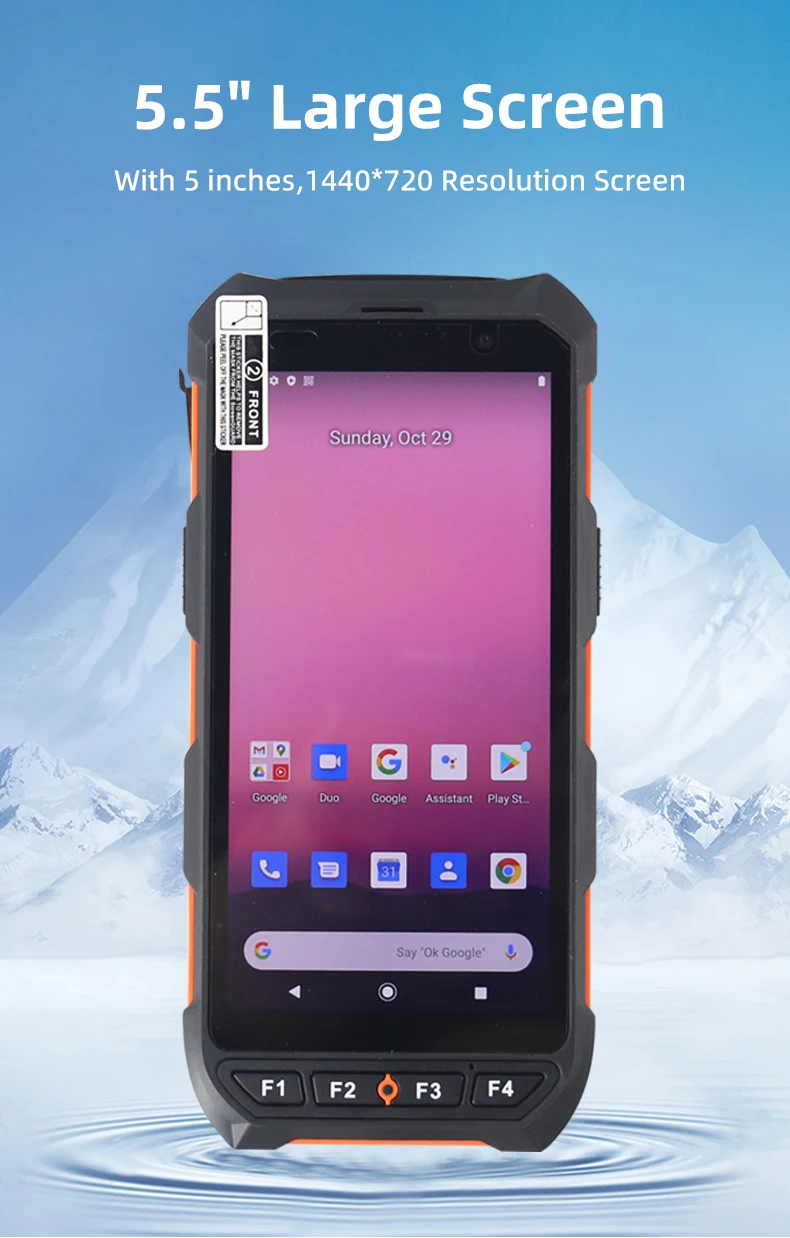

Tough 5.5 in. TFT-LCD(720x1440)touch screen with backlight

Backlight

LED backlight

Expansions

2 PSAM, 2 SIM, 1 TF，

Battery

Rechargeable li-ion polymer, 3.8V,5200mAh

PERFORMANCE CHARACTERSTICS

CPUCPU

Cortex A73 2.0GHz octa-core

Operating System

Android 13

Storage

4GB RAM/64GB ROM,
MicroSD(max 256GB expansion)

USER ENVIRONMENT

Operating Temp

-20℃ to 50℃

Storage Temp

-20℃ to 70℃-20℃ to 70℃

Humidity

5%RH to 95%RH(non-condensing)

Drop Specifications

5ft./1.5 m drop to concrete
across the operating temperature range

Sealing

Ip65, IEC compliance

ESD

±15kv air discharge, ±8kv direct discharge

DEVELOPMENT ENVIRONMENT

SDK

Handheld-Wireless Software Development Kit

Language

Java

Environment

Android Studio or Eclipse

DATA COMMUNICATION

WWAN

TDD-LTE Band 38, 39, 40, 41; FDD-LTE
Band 1, 2, 3, 4, 5,7,8,12, 17, 20;
WCDMA (850/1900/2100MHz);
GSM/GPRS/Edge (850/900/1800/1900MHz);

WLAN

2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac

WPAN

Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.2

GPS

GPS(A-GPS), accuracy of 5m

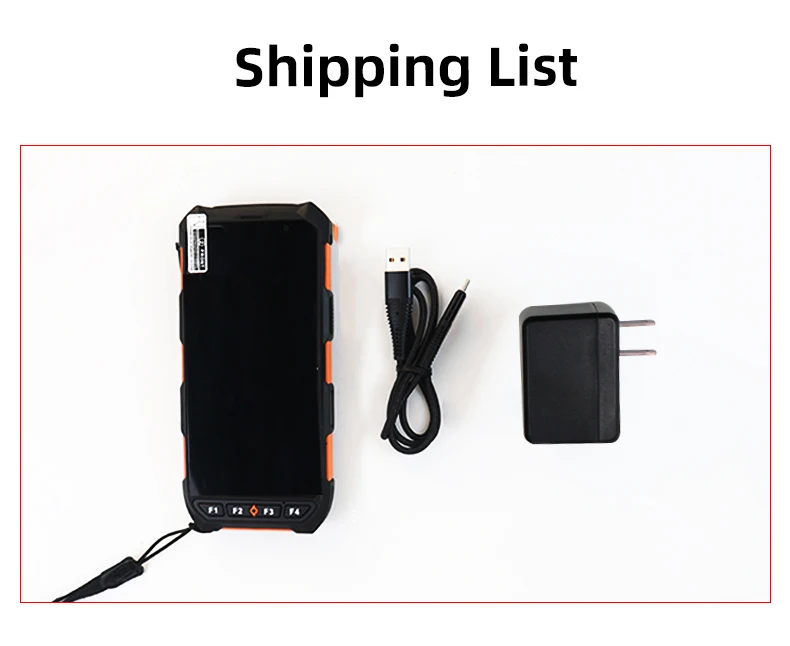

ACCESSORIES

Standard

1xPower Supply;1xLithium Polymer Battery;1xType-C cable

Optional

Cradle

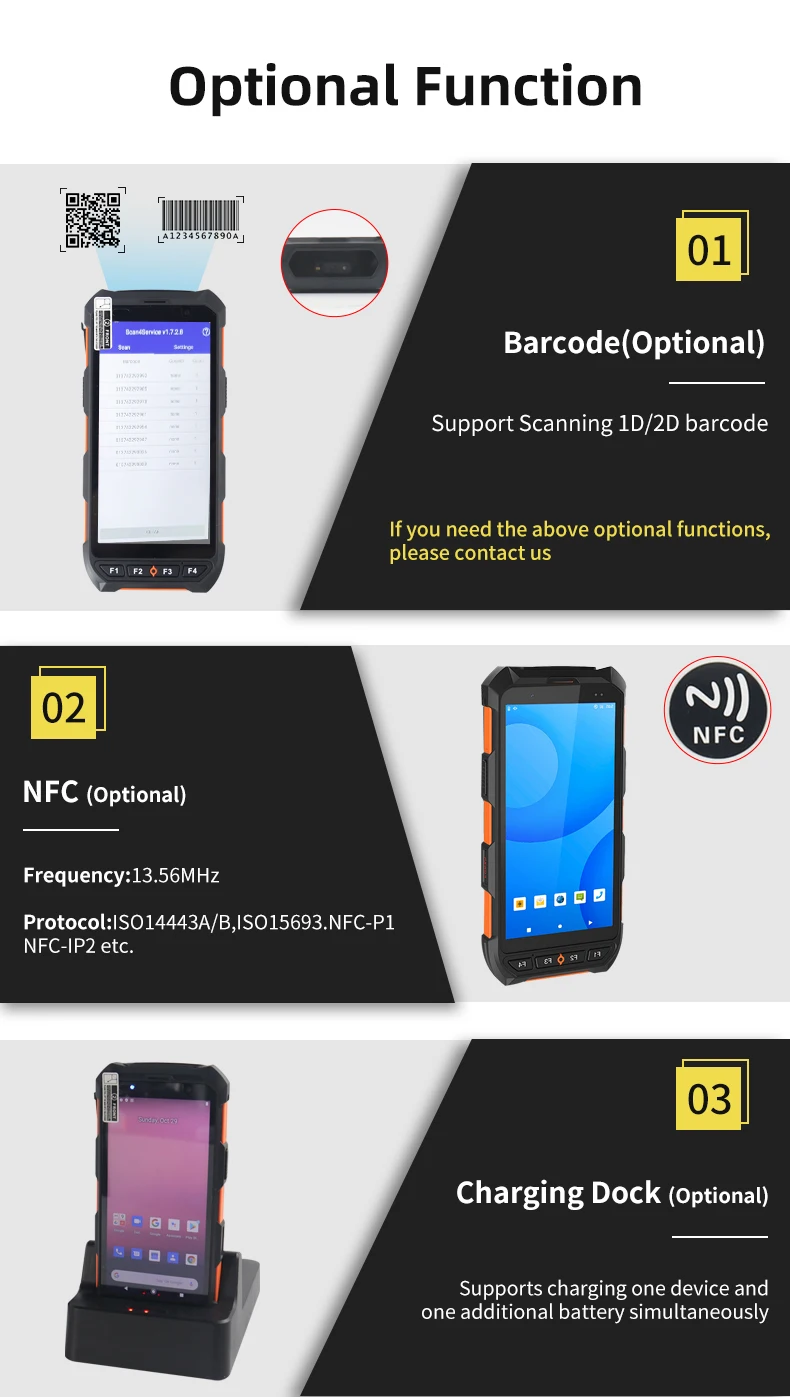

BARCODE READER(OPTIONAL)

2D Barcode

2D CMOS Imager

Honeywell N5703 2D Scan Engine/ Newland NLS-CM60/Newland NLS-N1

Symbologies

PDF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, U PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal. etc.

PDF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, U PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal. etc.

COLOR CAMERA

Resolution

Rear 13 megapixel, front 5.0 megapixel

Lens

Auto-focus with LED flashAuto-focus with LED flash

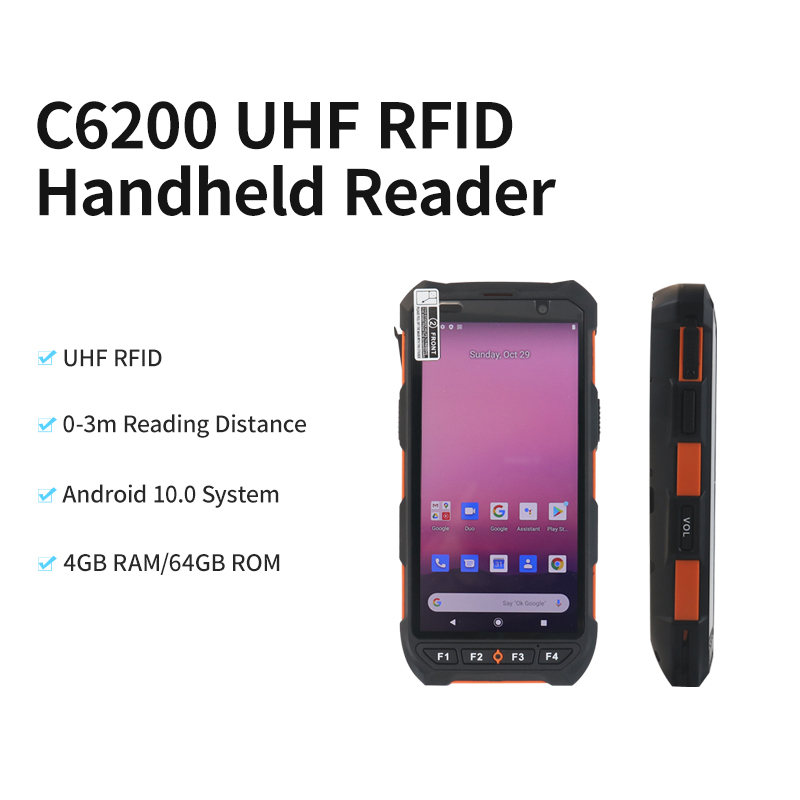

RFID READER(OPTIONAL)

UHF RFID

Frequency
865~868MHz or 902~925MHz

Protocol
EPC C1 GEN2/ISO 18000-6C

Antenna Gain
Circular antenna(2dBi)

R/W Range
5m(tags and environment dependent)
