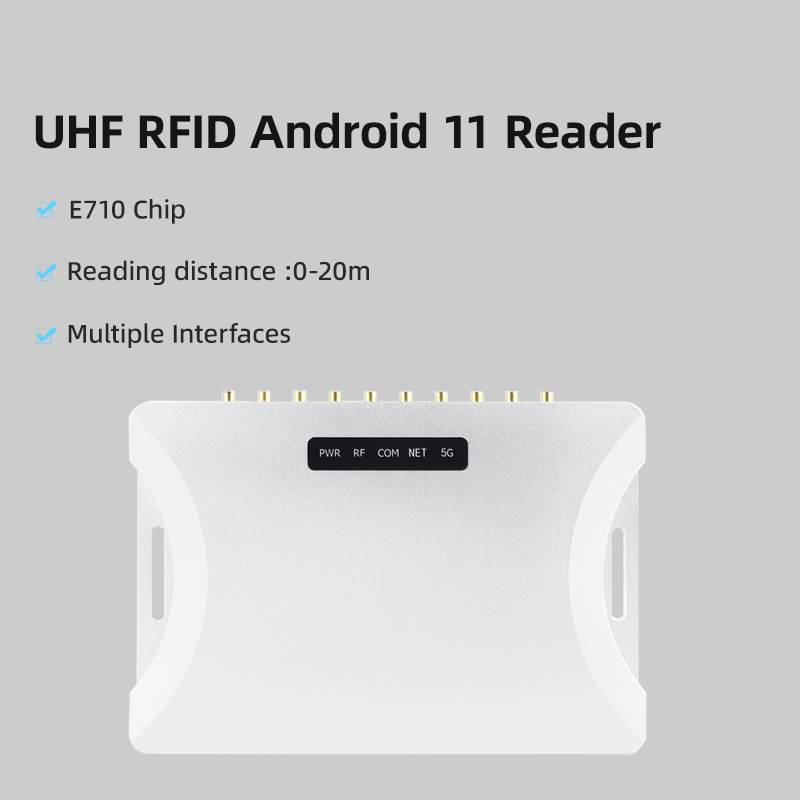

Brand

Fonkan

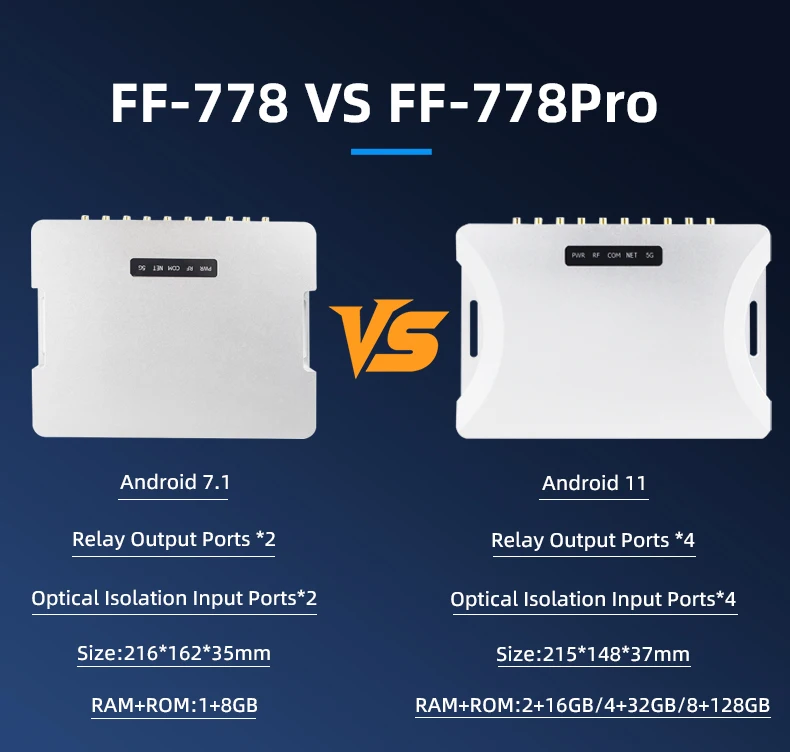

Model

FF-778PRO

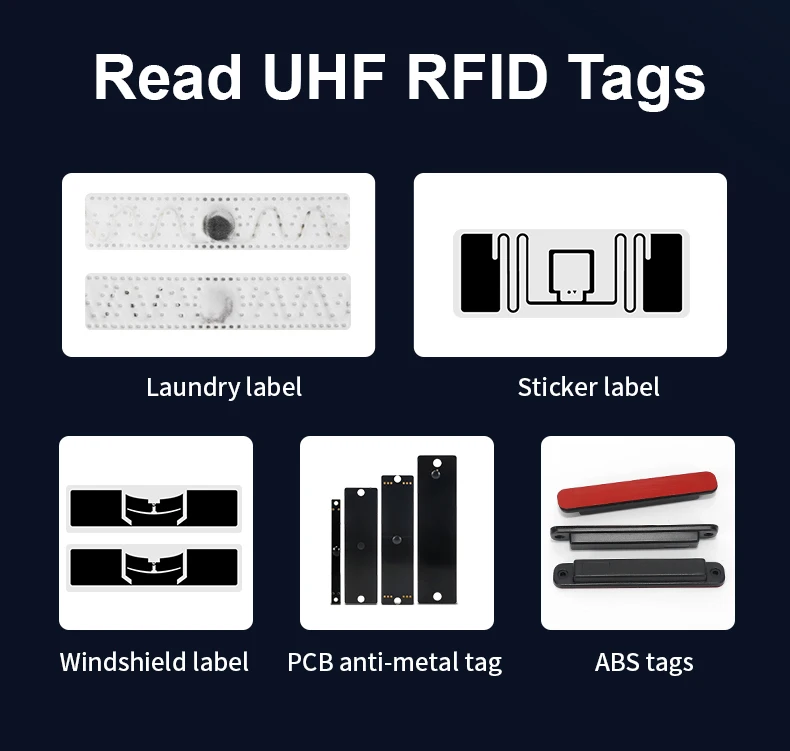

Protocol

ISO18000-6C

Frequency

865-868Mhz(EU)/902-928Mhz(US)

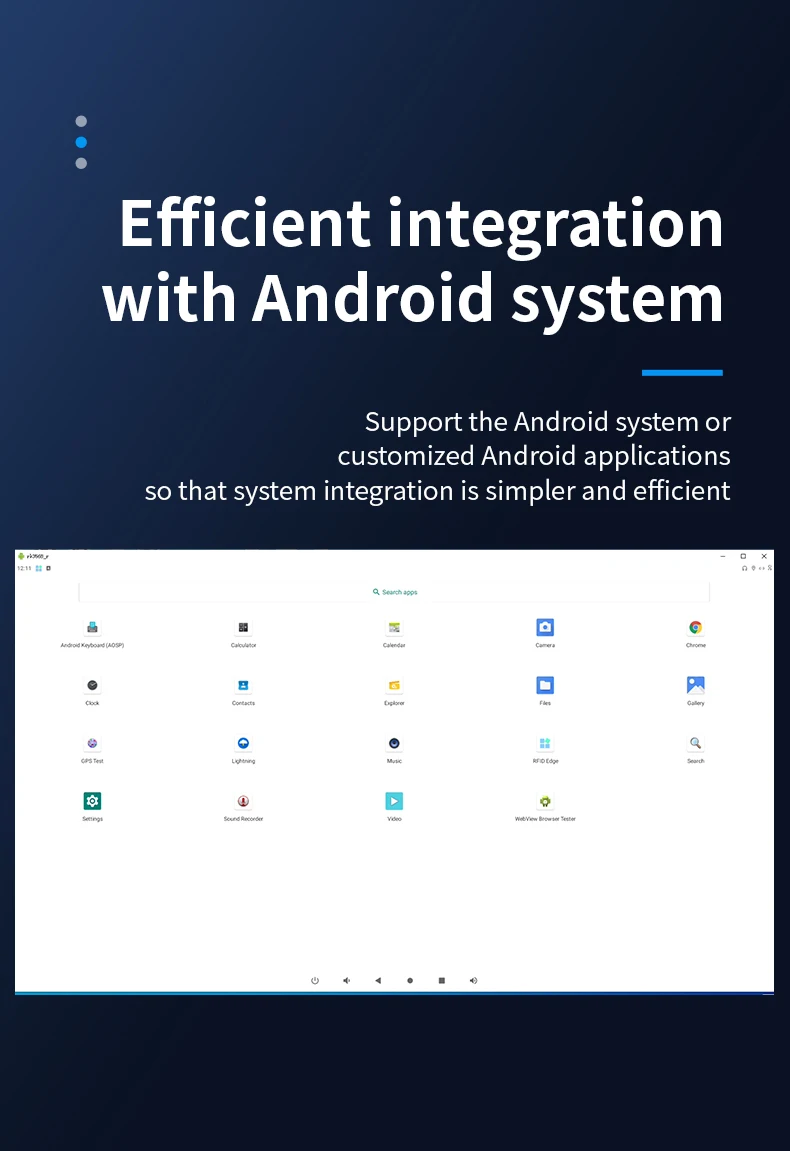

System

Android 11

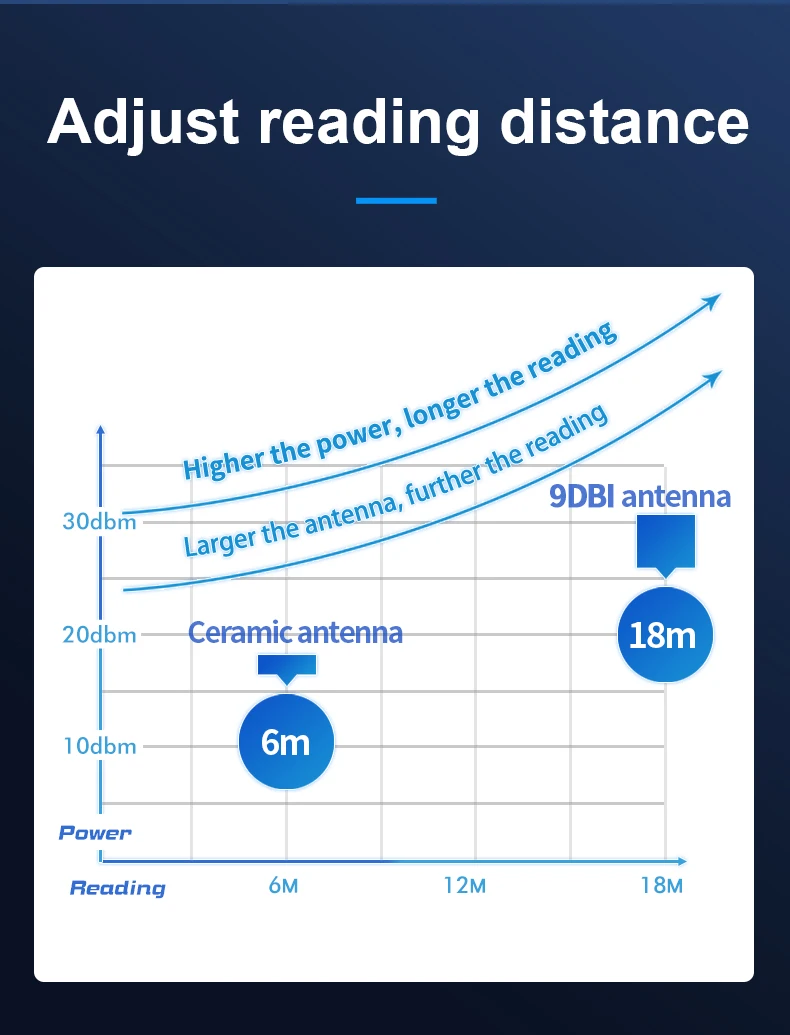

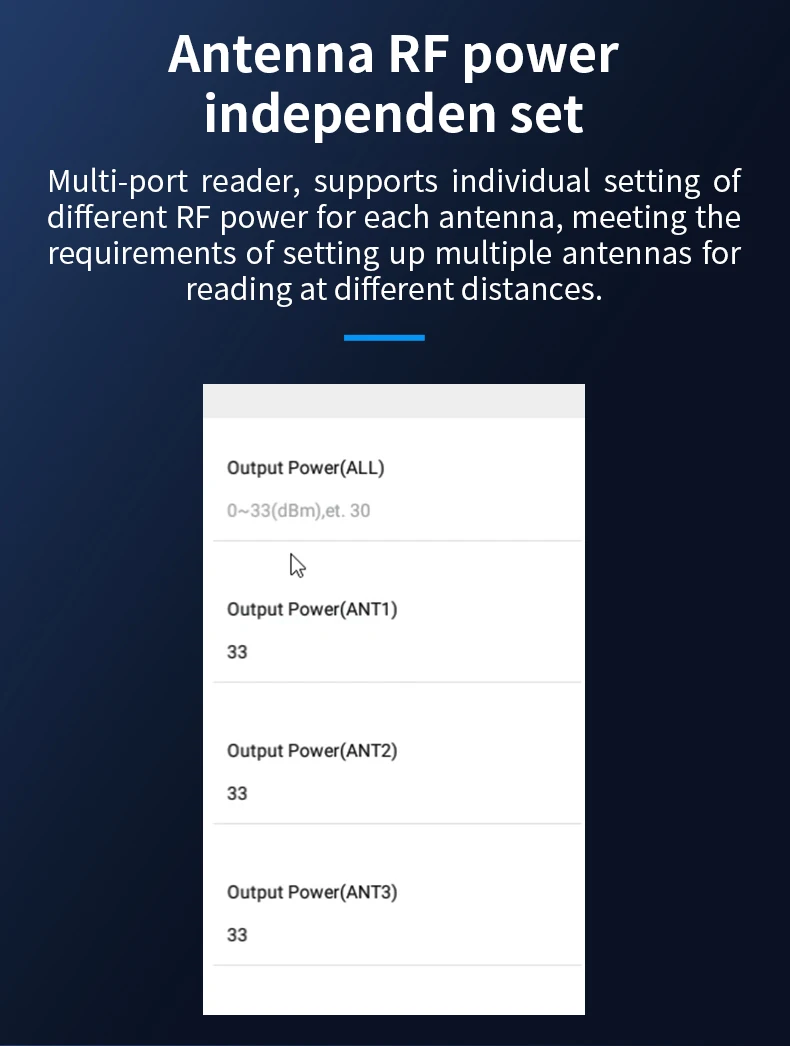

RF Power

0~33dbm

Read speed

>1000pcs/Sec

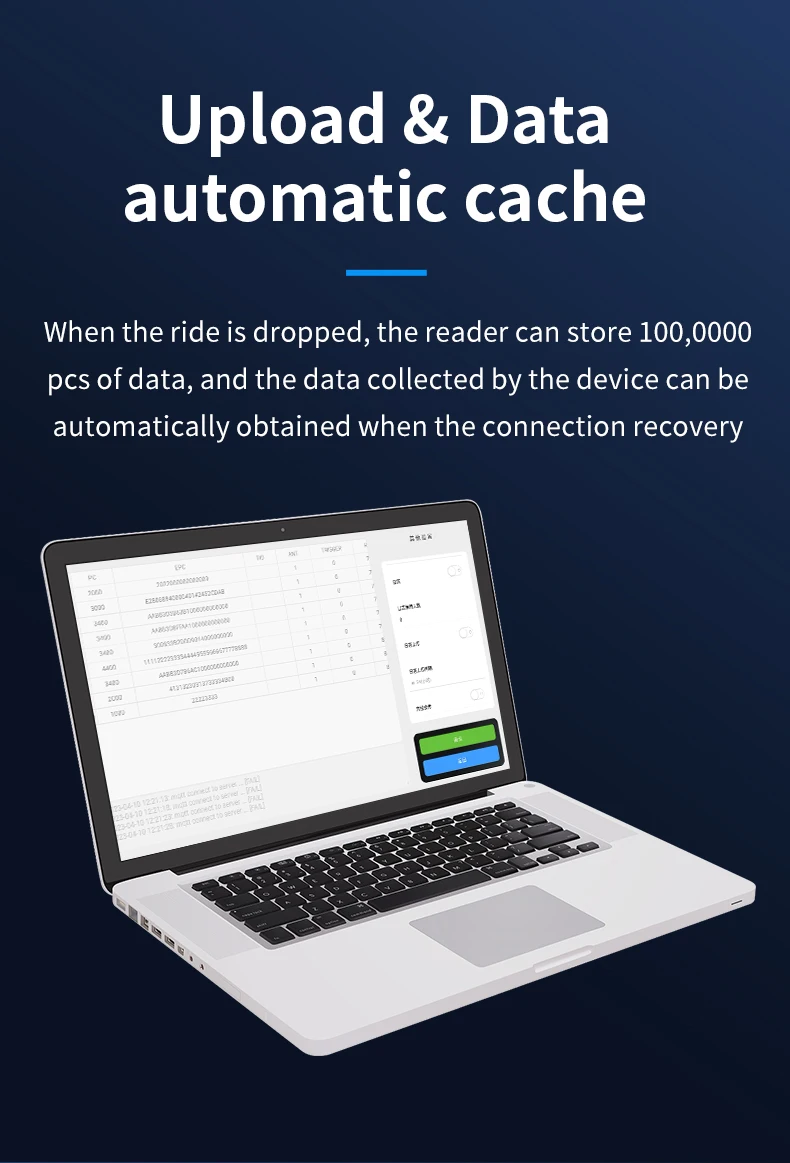

Storage

With large-capacity storage, support SD card up to 256G

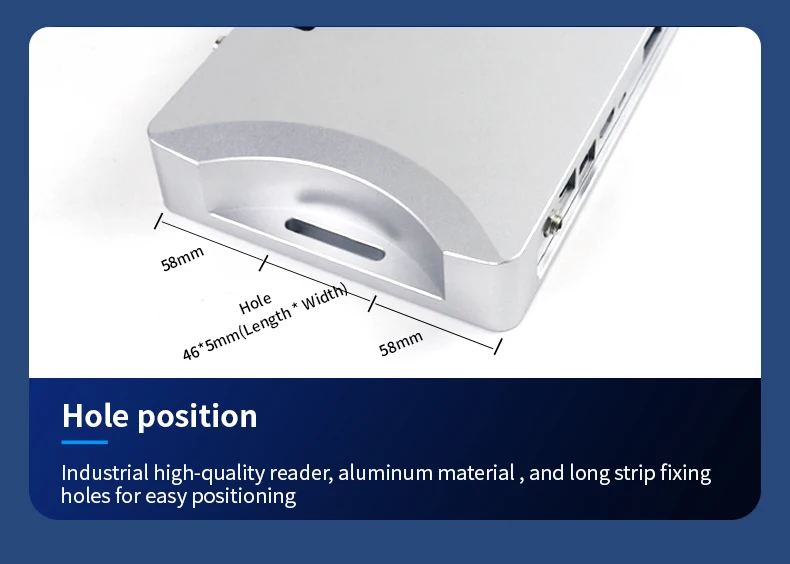

Material

Aviation Aluminum

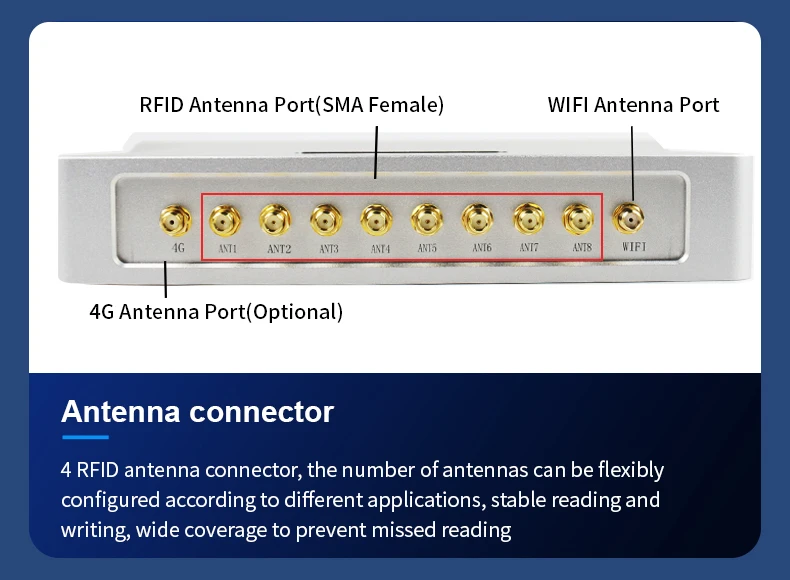

Connector

RP-TNC Male

CPU

Qualcomm 1.3GHZ Quad core

RAM+ROM

2GB+16GB/4GB+32GB/8GB+128GB(Optional)

Working current

800mA±5%

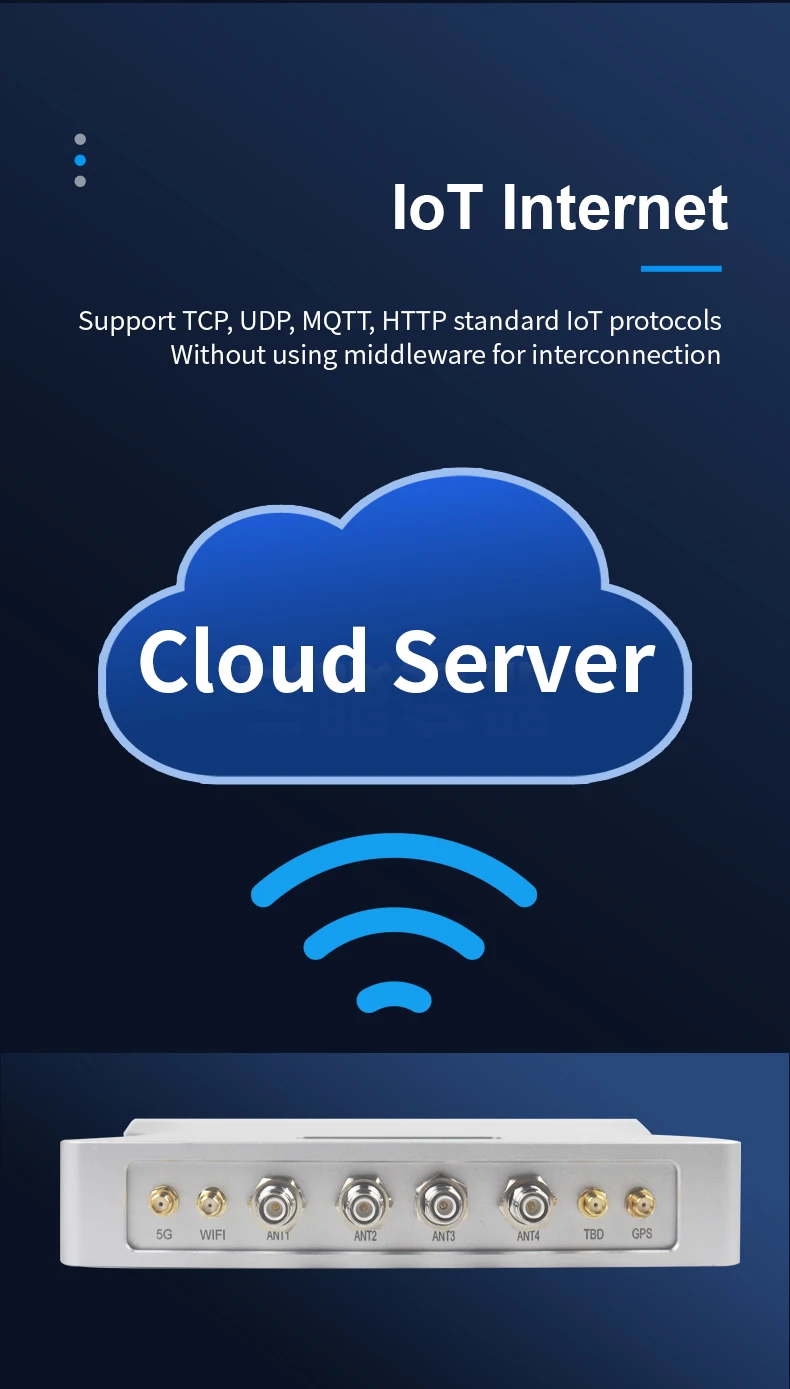

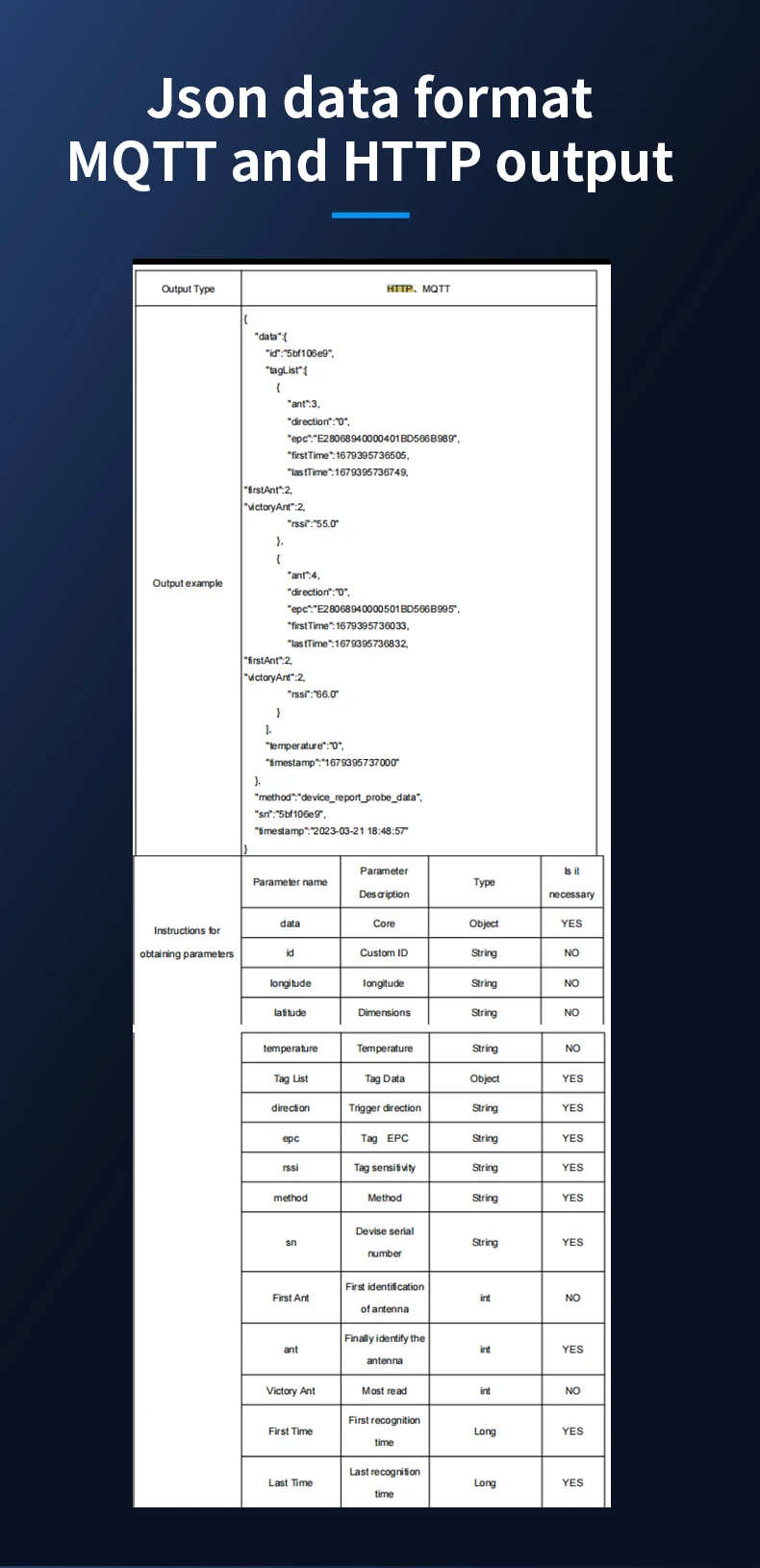

Net Protocol

Support TCP,UDP,HTTP,MQTT

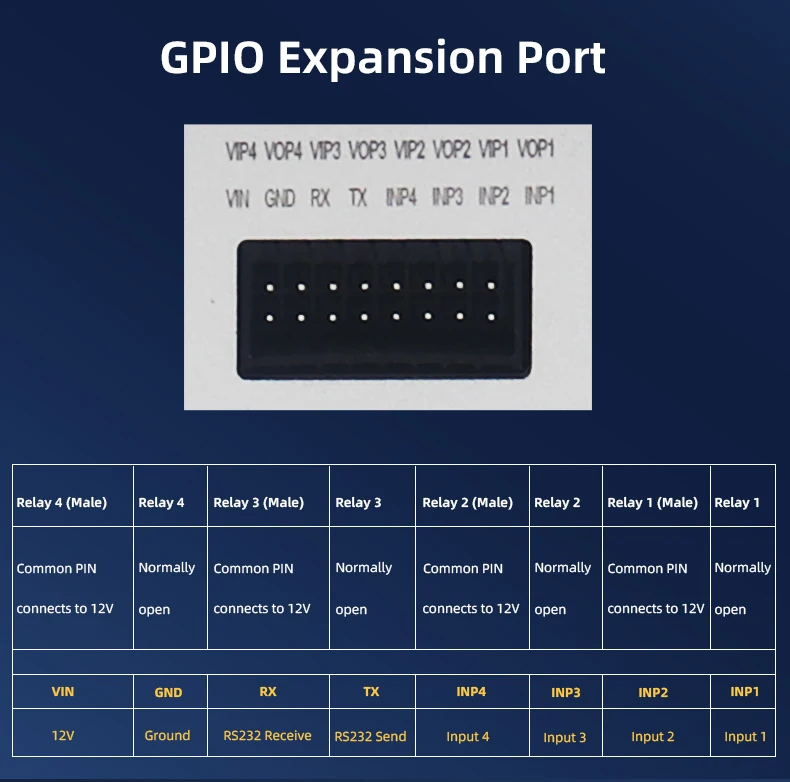

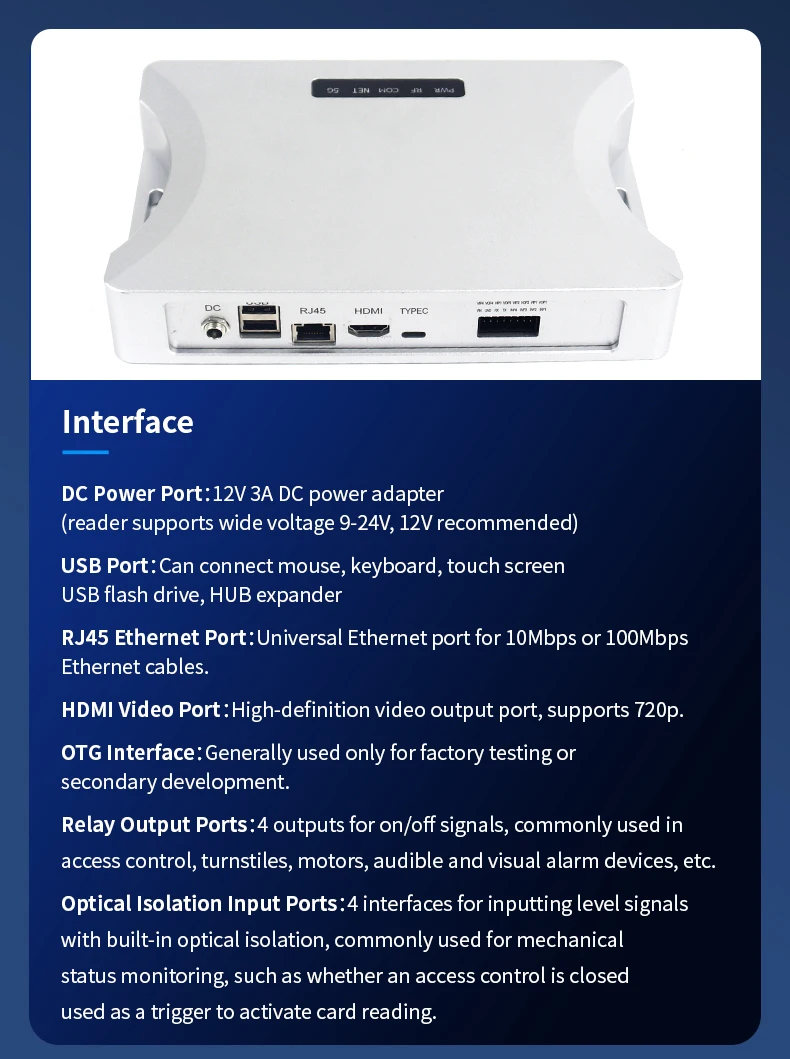

GPIO

Relay output, 4-channel input with optocoupler isolation

(Support customized)

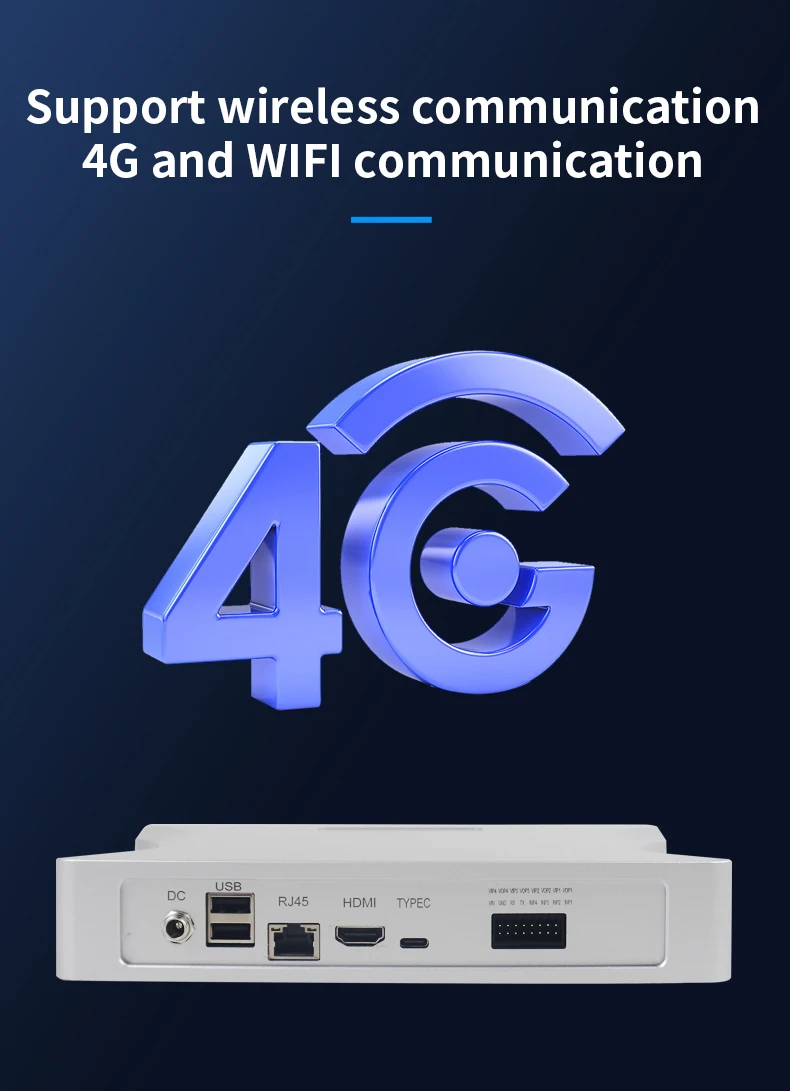

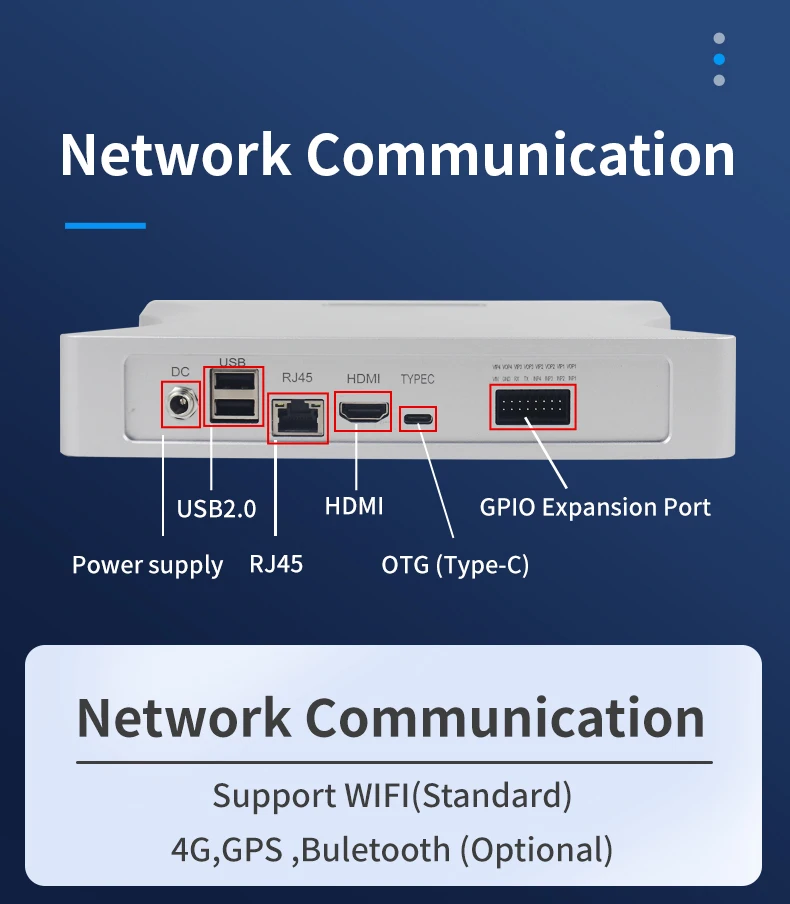

Wireless communication

WIFI | Buletooth (optional) | 4G/5G networks (optional)| BeiDou/GPS positioning (optional)

RJ45*1

Ethernet 100/10Mbps

USB port*3

USB 2.0 TYPE-A*2|USB TYPE-C*1 with USB-OTG capability

Video interface

HDMI 2.0 supports 4K/60PFS high-definition
audio and video output

Power supply

DC12V (12V/5A recommended), POE+802.3at 25.5W (optlonal)

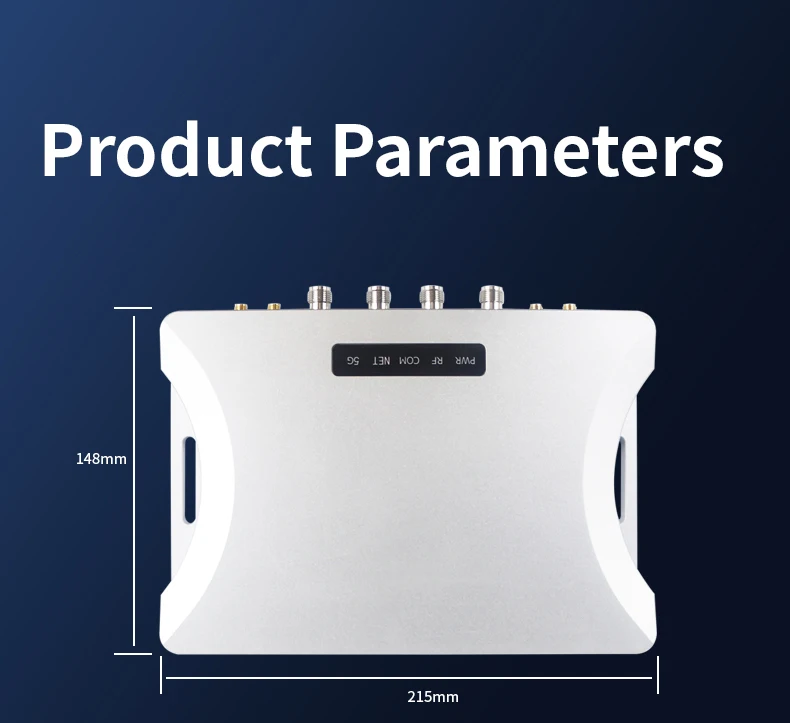

Size

215*148*37mm

N/W

1.2KG

Operating temp

-25℃~+65℃

Storage temp

-40~+85℃
