R2000 Mini size Reader

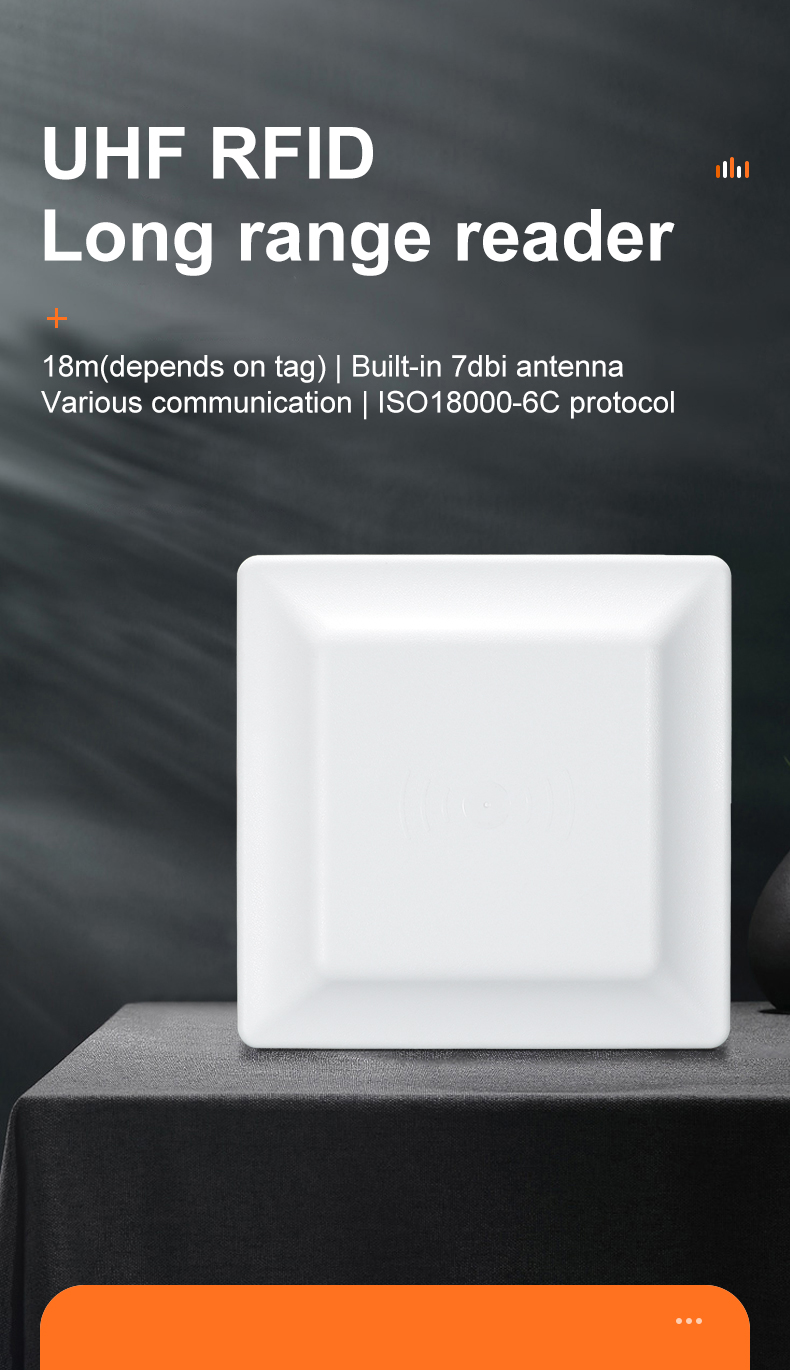

UHF RFID R2000 Long Range Reader FI-803
Introduction
Feature
Introduction
- Based on independent intellectual property development, adapt reader to work with global frequency range.
- Parking lot, Logistics, Access control, Electronic security, Manufacturing automation and Transportation etc.
- Bulit-in Impinj R2000 chip, read range 15meter, good at multi-tags reading
Feature
- RF output power 30dbm adjustable, support multi work modes (auto, command, triggering);
| Specification | |
| Model# | FF-803 |
| Reader Performance | |
| Frequency range | 902-928MHZ（or customized） |
| FM mode | FHSS or fixed frequency, set by the software |
| RF output | 33dBm adjustable |
| Communication interface | RS232,RS485,Wiegand26/34, TCP/IP, WiFi/4G |
| Communication rate | Serial port 9600～115200bps |
| GP I/O interface | 12 pin + 4 pin |
| Power dissipation | average<10W |
| Application software | Provide with API SDK and VC, VB, Java application routines |
| Tag Operation Performance | |
| Reading distance | 3~15m equipped with 8dbi antenna (tag dependent) |
| Air interface | EPC global UHF ISO-18000-6C（EPC G2），ISO-18000-6B |
| Mechanical and Electrical Performance | |

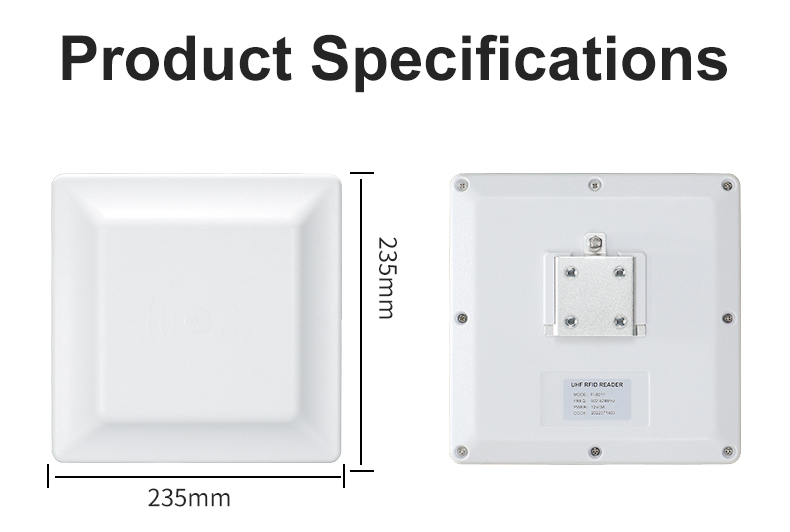

| Dimension | 235(L)*235(W)*58(H)mm |
| Power supply | Equipped with power convertor 220V AC input, ＋9V/3A DC output |
| Weight | 1KG |
| Humidity | 5% to 95%, non-condensing |
| Protection grade | IEC IP54 |
| Operation temperature | -20 ºC to +60 ºC |
