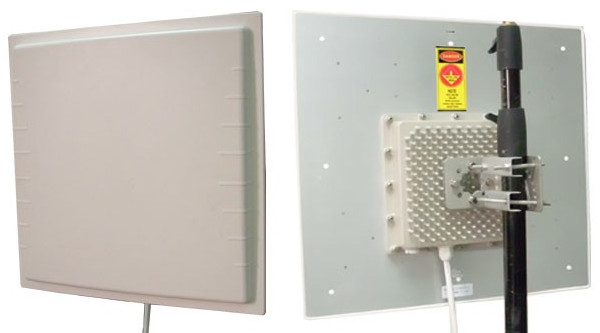

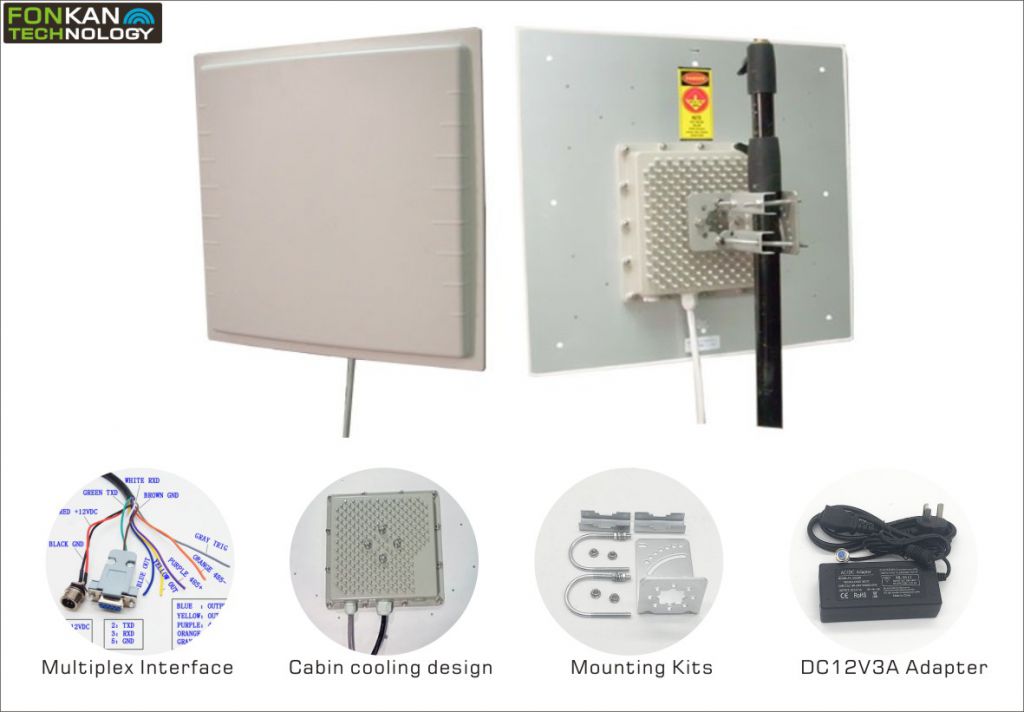

RFID Long Range Reader
Applications:
Logistics and warehouse management
Intelligent parking management
Productive lines management
Product counterfeit-proof inspection
Other fields: used widely in club management, libraries, students schools, consumption management, timemanagement, dinner management and pool management
Reader characteristics:
Special anti-collision algorithm, high efficient of multi-tag identify capability
Compatible ISO18000-6B and ISO18000-6C (EPC-GEN2) protocol standards
Reading/writing tag capability: reading up to 15m
Reader supports multi-tag identify, single tag read, tag write, lock and kill tag
Logistics and warehouse management
Intelligent parking management
Productive lines management
Product counterfeit-proof inspection
Other fields: used widely in club management, libraries, students schools, consumption management, timemanagement, dinner management and pool management
Reader characteristics:
Special anti-collision algorithm, high efficient of multi-tag identify capability
Compatible ISO18000-6B and ISO18000-6C (EPC-GEN2) protocol standards
Reading/writing tag capability: reading up to 15m
Reader supports multi-tag identify, single tag read, tag write, lock and kill tag
| Specification | |
| Model# | FI-802 |
| Frequency range | 902-928MHZ(or customized) |
| FM mode | FHSS or fixed frequency, set by the software |
| RF output | 30dBm adjustable |
| Communication interface | TCP/IP, RS232, RS485, Wiegand26/34, WiFi/4G |
| Communication rate | Serial port 9600~115200bps,RJ45 10Mbps |
| Polarization | Circular polarization |
| GP I/O interface | 12 pin + 4 pin |
| Power dissipation | average<15W |
| Application software | Provide with API SDK and VC, VB, Java application routines |
| Tag Operation Performance | |
| Reading distance | 12-15m equipped with 12dbi antenna(tag dependent) |
| Air interface | EPC global UHF ISO-18000-6C(EPC G2),ISO-18000-6B |
| Mechanical and Electrical Performance | |
| Dimension | 445(L)*445 (W)*70(H)mm |
| Power supply | Equipped with power convertor 220V AC input, +9V/3A DC output |
| Weight | 2KG |
| Humidity | 5% to 95%, non-condensing |
| Protection grade | IEC IP65 |
| Operation temperature | -20 ºC to +60 ºC |
| Storage temperature | -40°C to 80°C |
