RFID Fixed Reader

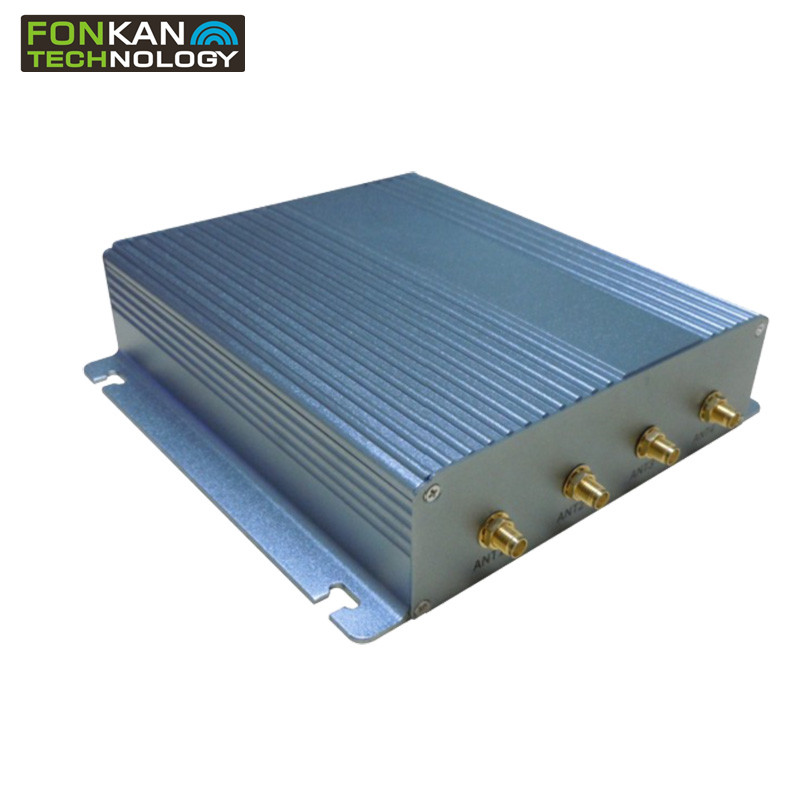

FF-702 is designed for inventory management, 4 antenna ports with SMA connector, it would increase the scan area.Reader with TCP/IP, RS232, RS485, WG26/34 interface, convenient for customers for data transfer.
FF-702 4 channel antenna port fixed reader suitable for warehouse, logistics, asset management, person access control, school time attendance application.
FF-702 4 channel antenna port fixed reader suitable for warehouse, logistics, asset management, person access control, school time attendance application.
| Name | FF-702 4 Antenna Ports Fixed Reader |
| Frequency range | 860-868MHZ, 902-928MHZ(can be Customized) |
| Frequency modulation | FHSS or fixed-frequency, can be set by software |
| RF output | 30 dBm; 50 ohm load |
| The number of antennas | 1/2/4 SMA antenna connector for selections |
| Communication interface | 10M/100MAdaptive Ethernet,RS232,RS485,Wiegand26/34 interface |
| Communication rate | Serial rate 9600~115200bps,RJ45 is 10Mbps |
| Secured firmware upgrade | The upgrade mechanism can be extended |
| (GPIO) Input / Output | 2 inputs, 1 output |
| Application software | Supply API SDK and C++ and C#, Java application routines |
