1. Built-in Impinj UHF reader chip and TI ARM embedded processing chips to achieve high-speed reading and data fast operation
2. Full support to meet the EPC global UHF Class1 Gen2 / ISO 18000-6C / ISO18000-6B electronic tag standard
3. Operating frequency is between 860-868MHZ / 902- 928MHZ (can be adjusted according to different countries or regions)
4. RS232, RS485 and TCP / IP network communication
5. Support 1, 2, 4 external TNC antenna connections
6. Output power reach 32dbm, it is adjustable. Support active mode, command mode and trigger mode.
7. Reading buzzer and LED status indication; support online upgrade for hardware by communication port.
8. Reader supply multi I/O input output connectors, convenient for device to integrate and application
9. Highly reliable design for industrial structure to meet the demanding work environment
Specification
|
Specification |
|
|
Model# |
FF-701 |
|
Performance Index |
|
|
Frequency range |
860-868MHZ, 902-928MHZ( can be customized ) |
|
FM mode |
FHSS or fixed frequency, set by the software |
|
RF output |
+10.0 to +32.5 dBm; 50 ohm load. |
|
Communication interface |
TCP/IP, RS232, RS485, Wiegand26/34, WiFi/4G |
|
Communication rate |
Serial port 9600~115200bps, RJ45 10Mbps |
|
The number of antennas |
1 TNC antenna connector; 2 TNC antenna connector; 4 TNC antenna connectors for selections |
|
Secure firmware upgrade |
The upgrade mechanism can be extended |
|
input / output (GPIO) |
2 inputs, 1 output |
|
Application software |
Provide with API SDK and VC,C#, Delphi Java application routines |
|
Tag Operation Performance |
|
|
Reading distance |
8dbi Antenna configuration, typical read range: 3 to 25 m (depends on tag) |
|
Air interface |
EPC global UHF ISO-18000-6C(EPC G2),ISO-18000-6B |
|
Maximum receiver sensitivity |
-82 dBm; Maximum return loss: 10 DBm |
|
Mechanical and Electrical Performance |
|
|

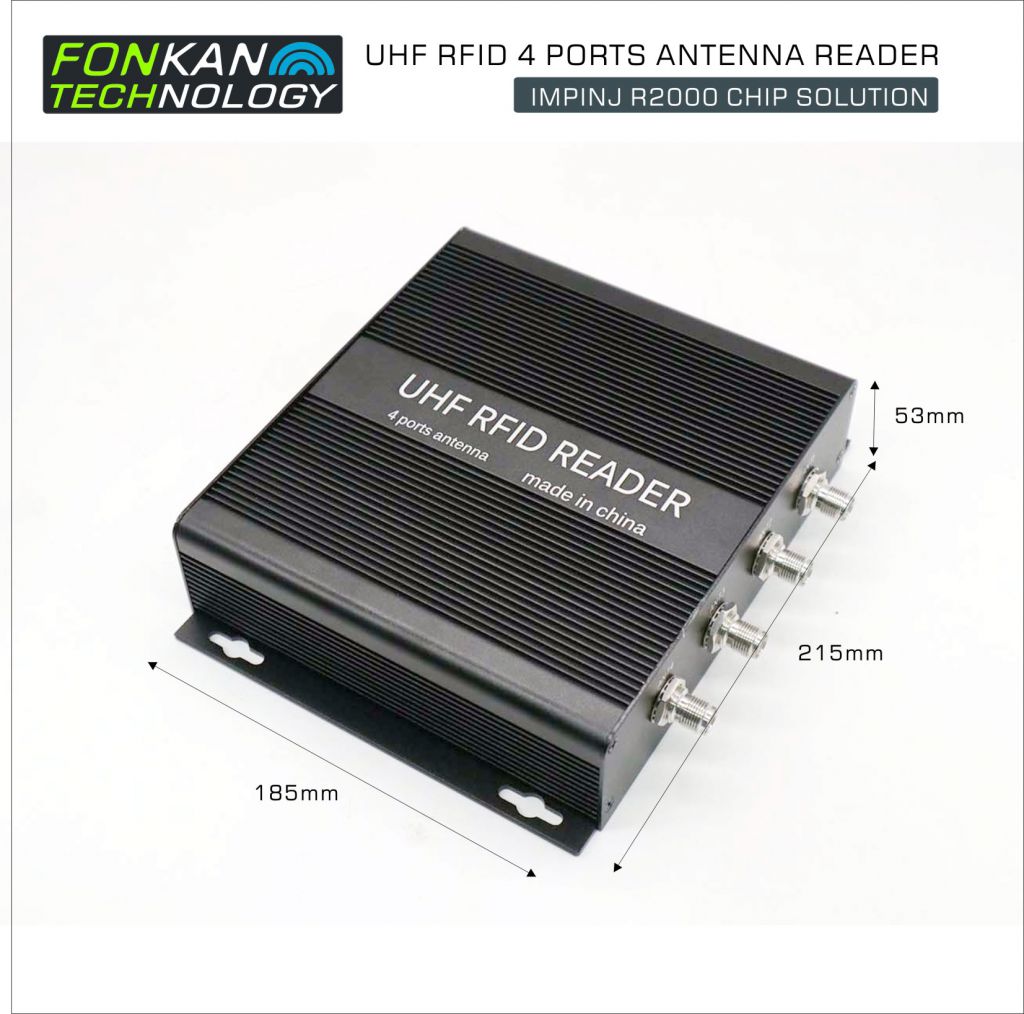

Dimension |
213 (L) * 205 (W) * 53 (H) mm |
|
Power |
With 220V AC input, the output of +12 V/3A DC power converter |
|
Weight |
<2KG |
|
Humidity |
5% to 95%, Non-condensing |
|
IP rating |
IEC IP51 |
|
Operating Temp. |
-20 ºC to +75 ºC |
|
Storage Temp. |
-40°C to 80°C |
